Product: Mishimoto intercooler J-Line

Details

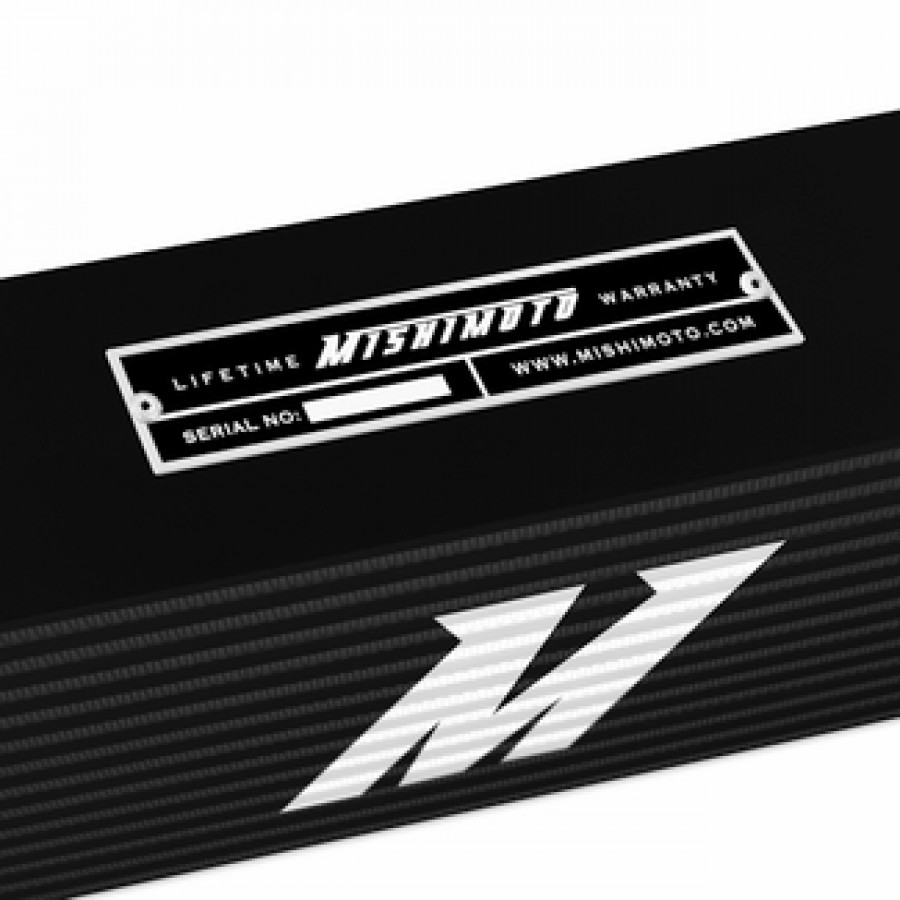

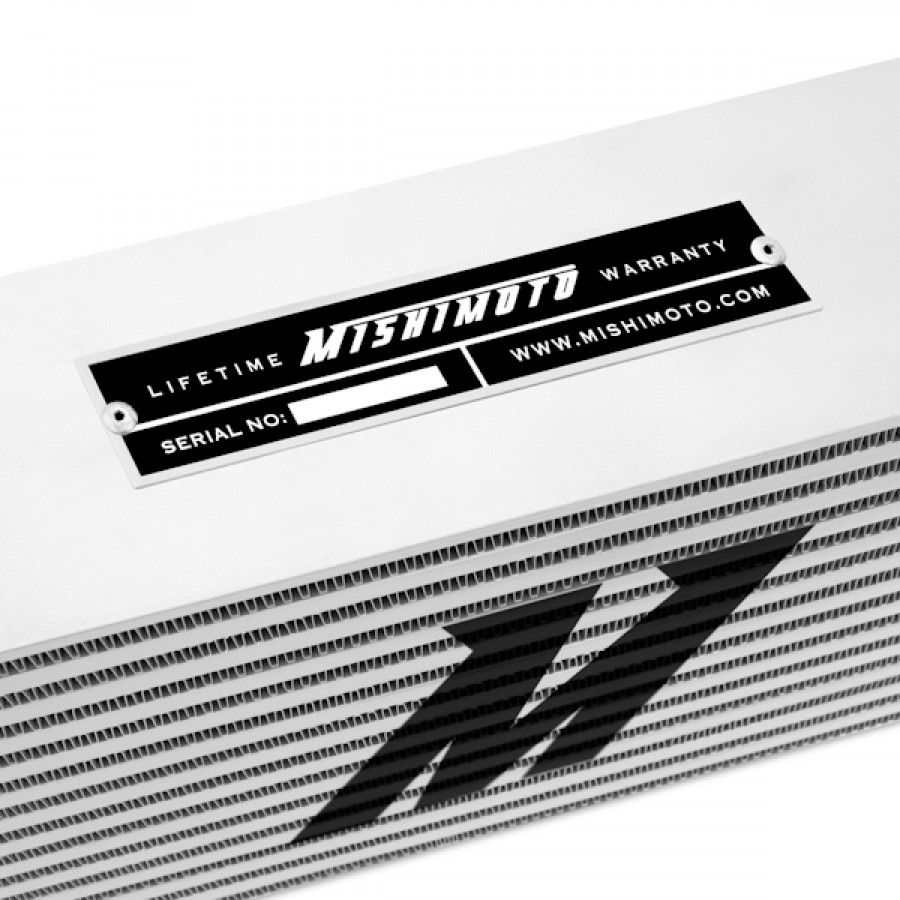

Mishimoto Universal Race Edition Intercooler J-Line

This universal front mount intercooler has been engineered to handle 500HP, even with its compact size.
Mishimoto J-Line intercooler is perfect for cars with limited front end space.
In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar.
Like all Mishimoto intercoolers, the J-Line is constructed with aluminium 6061 and is TIG welded.

Dimensions:

CONSTRUCTION: bar and plate
OVERALL SIZE: 749mm x 190mm x 95mm
CORE SIZE: 560mm x 183mm x 95mm
INLET/OUTLET: 63.5mm
MAX. RECOMMENDED 2.72 BAR
TANK WALL THICKNESS: 4 mm
PRODUCT WEIGHT: 8.49 kg
Two threaded Universal Mounting Points

PURCHASE INCLUDES:
-Mishimoto Intercooler
- 2 x M12 x 1.25 Bolts
- Mishimoto Lifetime Warranty
